大家好，这集介绍的是如何手动创建一款音箱并计算新陈列角度。在平时使用新陈列中，我们无法知道新陈列需要倾斜多少角度， 每个人生气之间的角度又是多少是不好计算的。在新陈列掉挂的时候呢，就有可能因为无法达到满意的角度而重复的升降新陈列来调试，这样大大的增加了操作难度。 在一些大品牌的音箱，比如美牙伞 l a、 电动 b 都有自己的音箱模拟软件，里面都会有先进店计算的功能。还有许多知名的品牌也有一丝 fox 的数据， 他们可以在一次 fox 里面去模拟音箱的升压机和新能力的角度来方便用户使用。奥特曼狗可以通过手动的输入数据 来创建一款音箱，并计算行政列的角度。首先我们看到这款小程序，在名称里我们可以输入音箱的型号， 然后箱体的高度，宽度指的是单支音箱的高度与深度，尺寸单位是毫米。 接下来是现在内的角度选项，现在内的角度信息。每款扬声器都有特定的角度，通过连接不同的插销来改变每个音箱的角度，例如这一款音箱，他每个插销的角度表示的是 零四八十二。那我们可以回到小程序里，先确定角度的数量，数量我们选择四，然后就会出现输入框，再一次的输入每个输入框对应的角度， 输入完成之后，点击确定进行下一步。 这个页面是低音区的建立，首先看到这两条黑线 是以现在列为起点位置建立的一个坐标轴，然后这条实线表示的是听众区域的地面，虚线表示的是离地一点二米高度的位置， 是以人坐着的时候耳朵的高度作为听音面的高度，我们模拟的时候是以听音区的高度来计算的。起点表示的是线的起点，离坐标的起点的一个距离， 高度就是离地面的高度。终点位置表示的是线的中点，离远点的一个距离，高度是离地面的高度。点击加号可以增加一条线，我们可以说 大于第一条线的距离，使这两条线断开。输入高度就可以建立两个不一样的斜度的斜坡，点击减号即可删除当前的线。点击角度模式， 那听音区的建立模式就变成了角度模式。在现场测量的时候呢，我们可以通过手机软件来测量斜坡的坡度，再通过测量距离就可以确定 斜坡的长度，这样的话呢就可以更好的创建天音区域了。当天区建好之后，我们点击确定进行下一步。 现在是自动角度计算的模式，有三种模式，一个是比较常用的模式是等区域覆盖，是让每个扬声器都覆盖相等的区域来设计计算的。弓形是每个扬声器覆盖 的角度都相等，那螺旋形是以扬声器的角度从远到近角度逐渐增大的一个方式来计算的。通常来说，我们使用第一种计算即可 点击确定来进行下一步。接下来到达了最后一个页面，首先我们先考虑先阵列的吊挂高度，吊挂高度是以最上面的一只扬声器的顶点作为参考的，首先我们先使用默认的高度，然后我们选择音箱的数量，这里数量选择八， 点击计算就可以看到八支音箱的角度建议和每支音箱的轴线对应的一个距离，这里的距离指的是 原点区域和当前扬声器轴线的一距离。如果你觉得这个角度并不满意，也可以通过手动调节的方式来调节。扬声器的角度和这边的倾斜角表示的是现在 列主整体的一个倾斜角。当我们觉得如果你想要改变自动计算的模式呢？我们可以点击左键，然后选择弓形正列，然后点击计算即可。奥图 logo 的手动模式就介绍到这里了，谢谢大家的观看。

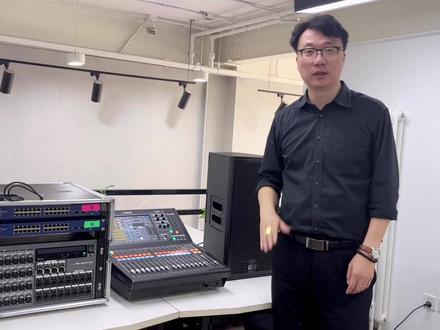

嗨，大家好，我接着讲，下面呢我们就讲硬件的链接。首先呢我们在讲硬件链接的时候，主要是对这个调音台系统。调音台系统呢分成两个部分，一个是接口箱，一个是台面。 首先我们达到一个调音台系统的时候要分成两部，第一部分是对我们这个接口箱和这个台面进行固件升级。 第二部分的遇见连接部分是怎么连线？他有两种连线方式，一个是菊花链，一个是星星连接。我们现在呢使用的菊花链也就是直连调音台出来以后直接连到这个接口箱上就可以了。

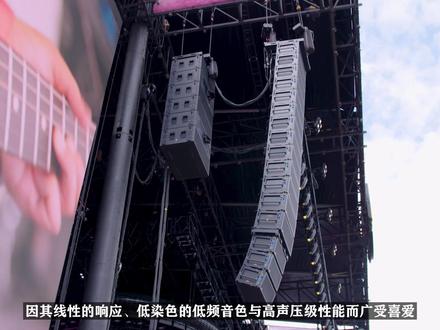

hello， i'm andy davis senior product manager here at maya sound and together with katie murphy we'd like to share with you this amazing news system panther is mya sounds all new large format linerary bringing the latest technology and features to the top end of our loud speaker range so why are we bringing this incredible new system to market now we are all aware that the world of life productions is changing as the industry changes so we need to monitor and adapt our offering to suit modern productions are becoming visually ever more stunning and they need audio solutions that can live in harmony with the visual design aspirations or without compromising on sonic quality stunning visuals are just one aspect of modern live entertainment that is constantly evolving increasingly sophisticated rigging automation systems allow some incredible scenic elements that add wow factor for the audience but these automation systems coupled with a greater regulatory burden that focuses on the all important safety of audiences， artists and crew all just underlines the importance of weight and flexibility in any next generation audio solution across the world awareness of green issues is playing a bigger part in everyday life and the production industry is no different from artists to audiences greater attention is being paid to the environmental costs of live entertainment it's clear to us that the green credentials of live entertainment will increasingly need to be presented so any new solutions need to be more power efficient as a company mya sound has shown with leopard lena and the ultra x products just how efficient and new generation of power amplifiers can be it's time for this to translate into larger products any next generation my sound solution must be capable of delivering amazing audience experiences in even the largest venues yet the market still needs to amaze in smaller applications and a spatial audio becomes ever easier to deploy for live entertainment the needs for a truly flexible solution become even greater maybe the dream for the modern industry would be a solution that can scale from stadiums down to theaters or maybe even something you could ground stack but all without compromising the audience experience compact size， low weight flexible deployment options the technology and with the power and capabilities to meet the most challenging sonic requirements what happens next from myosound needs to be designed to meet all these needs that have been set for us by the world of live entertainment and what happens next is panther panther is a single product family panther brings large system performance into a flexible efficient package so let's find out more about what makes panther so special。

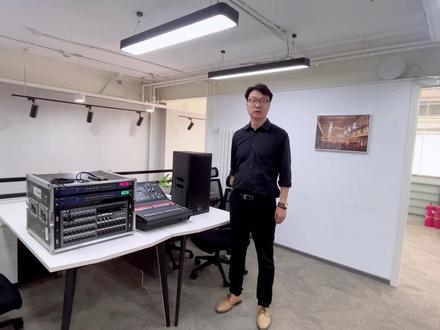

嗨，大家好，今天我给大家介绍一下雅马哈调音台、接口箱，还有 merson 的喇叭，咱们用这几个设备做一个小的一个系统，让他出声，咱们普通话就让他出声， 然后呢咱们是音源，用手机来播放，最后呢呈现一个这个效果，哎，推起来以后， 这就是一个小系统最终呈现的效果啊。分成两个部分给大家讲这套系统的链接，第一部分是硬件链接， 第二部分是软件的设置，也就是咱们的这些登记的配置啊和 dsp 的接口的配置。我分成两个部分给大家介绍。

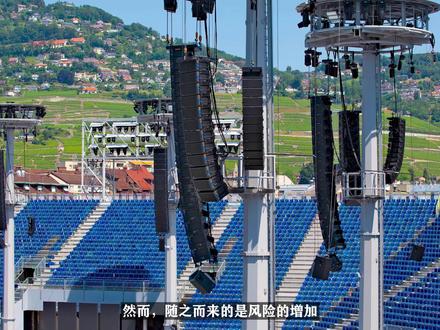

now let's take a look at how panther will work out in the field there's an all new top grid for panther which offers a huge range of up and down tilt angles plus single rigging point options the new top grid travels on top of panther arrays without extending beyond the footprint of the caster frame the standard production spec panther is whether protected ready for outdoor use and rated at ip fifty five connections are made using the new nitric top range for maximum deployment efficiency taking away the historical need for a rainhood the new nitric top connectors are weather sealed but for those who do not need to worry about the weather they're also fully compatible with standard nitric connectors analog connections are made using xlr three pin with female and male connectors to allow the user to loop through milan audio and amplified telemetry data are combined and accessed via a single ether con connector adding audio over ip connectivity to line arrays is now a practical reality thanks to the increasing availability of cable and switch infrastructure in creating panther the maya sound engineering team have taken the time to optimize the low frequency performance of the cabinet to work even more closely with the eleven hundred lfc already a hugely successful product well loved for its linear uncolored low frequency tonality and high spl capabilities of course the panther lineup comes in at a size weight and price point that allows it to be used in a wide range of situation so the whole of our lfc range will complement panther including using nine hundred lfc as a lightweight but powerful flown partner the native mode frequency response of the panther family not only takes into account the integration with lfc units， but also helps reduce the number of channels of dsp required in some applications， the native mode approach has already shown its benefits to our users in the incredibly popular leopard and leaner systems alongside the development of the milan connectivity solutions we have been working on a new software platform this platform will be available to complement panther and other products using milan milan connections are quickly and easily made and monitored system status is available for all components including legacy ms devices so your entire system is available to monitor all on one screen panther users will experience the benefits from my sound existing deployment tools naturally panther will be supported in the incredibly accurate map three d prediction software onsite signal management uses galaxy processors and by adopting milan directly to the cabinet users can gain extra flexibility from the compact cost effective galaxy four away its high milan channel count our galaxy users will also continue to benefit from product integration and our powerful lmbc tool which controls low mid frequencies in a raise and aligns them with the higher frequency system coverage creating superbly consistent coverage with fast setup times panther will also play a part in the deployment of larger spatial audio systems driven by spacemat go panther's compact form factor and impressive power handling will make it an ideal main loudspeaker for spatial systems panther joins leopard and lena at the top of our family of liner a solutions where power compact form factor ease of use value and incredible performance are the cornerstones of everything we do of course all that flexibility means nothing if a solution does not meet the pricing requirements for modern live entertainment all of the research into modern materials and design standards undertaken here at maya sound over the years means we're able to constantly refine not only the performance but the price point of our products panther is the most compact lightweight powerful system on the market and it's here we shipped and starting infigurating we can't wait for you to hear it we are myers sound， you spoke， we listened and then we went wild。
